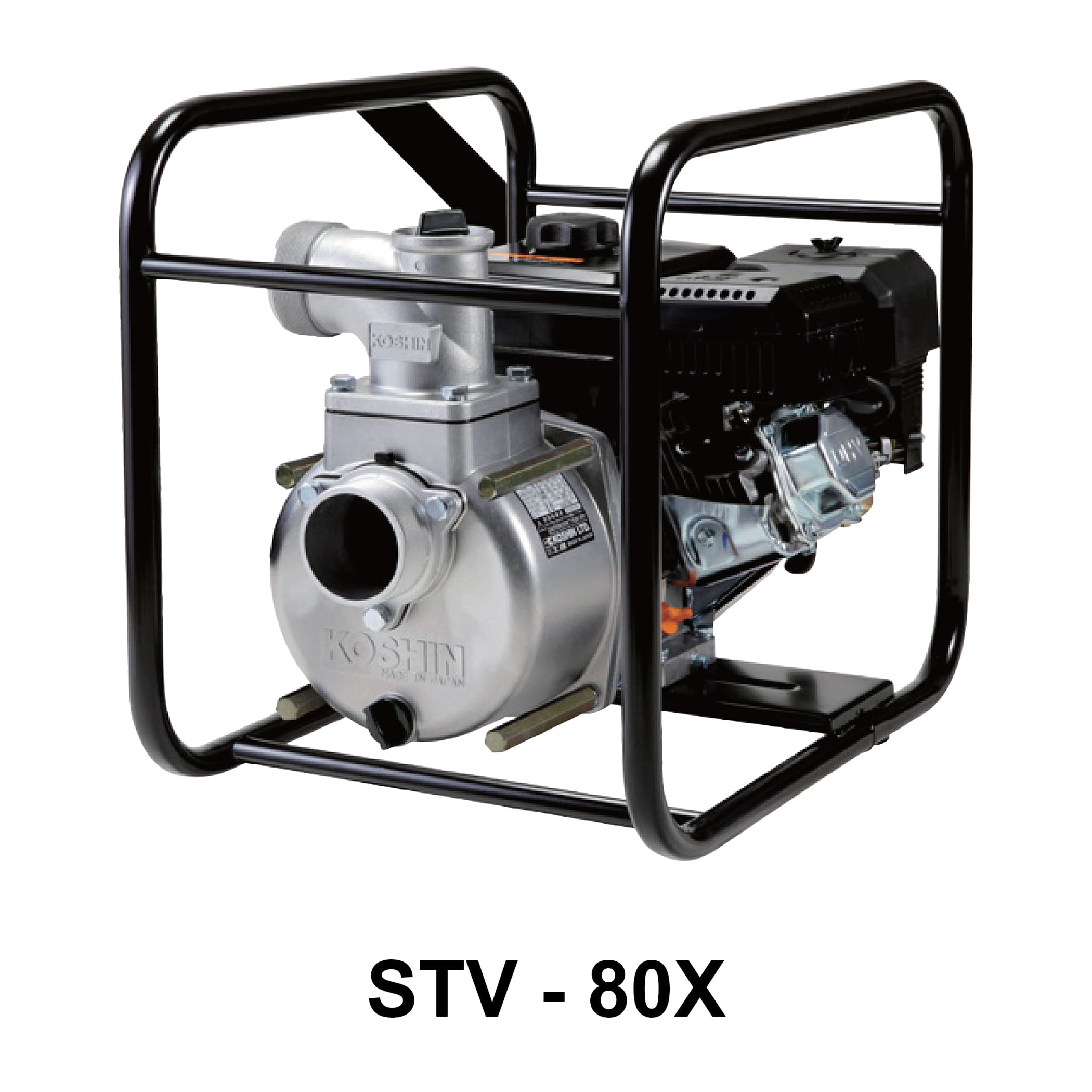

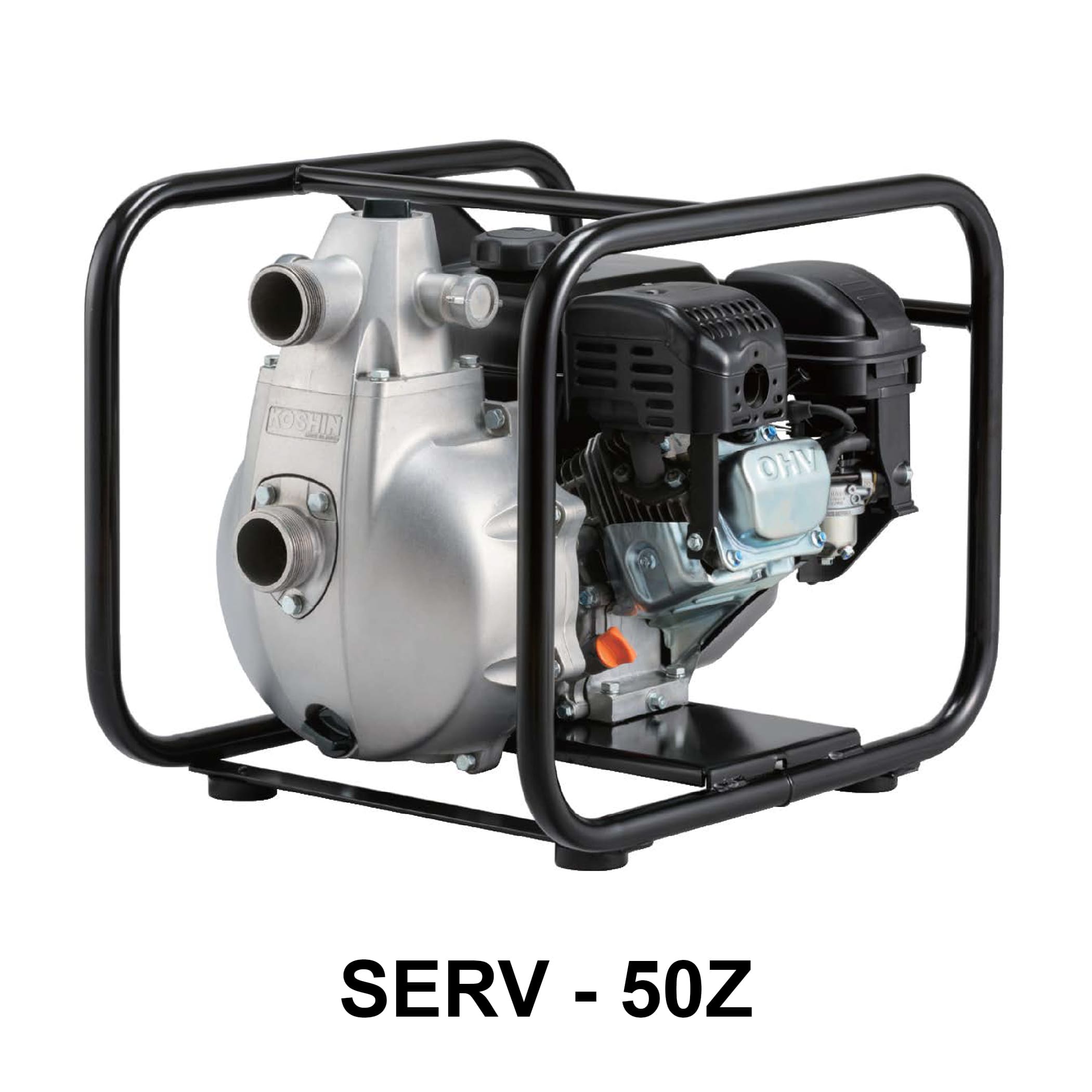

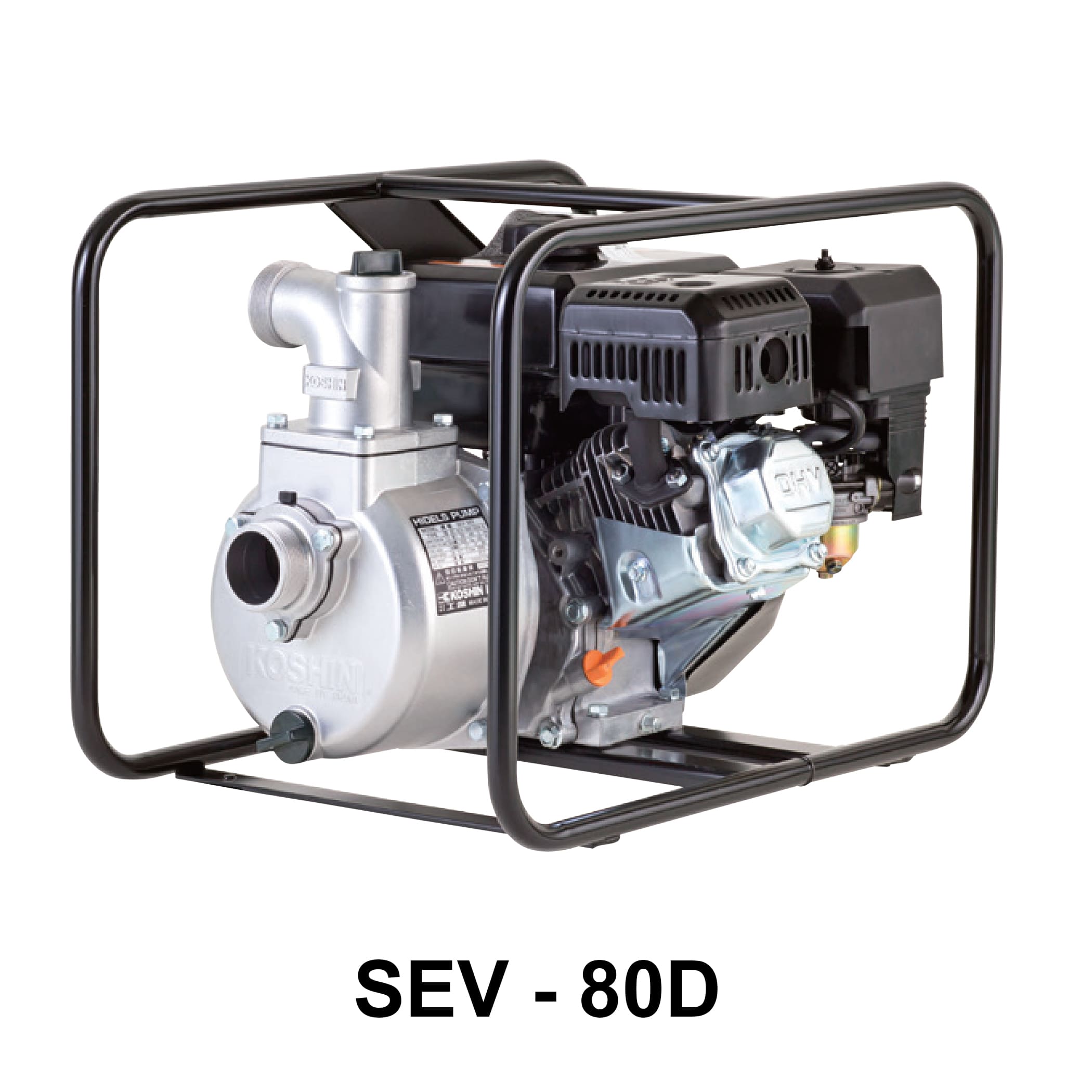

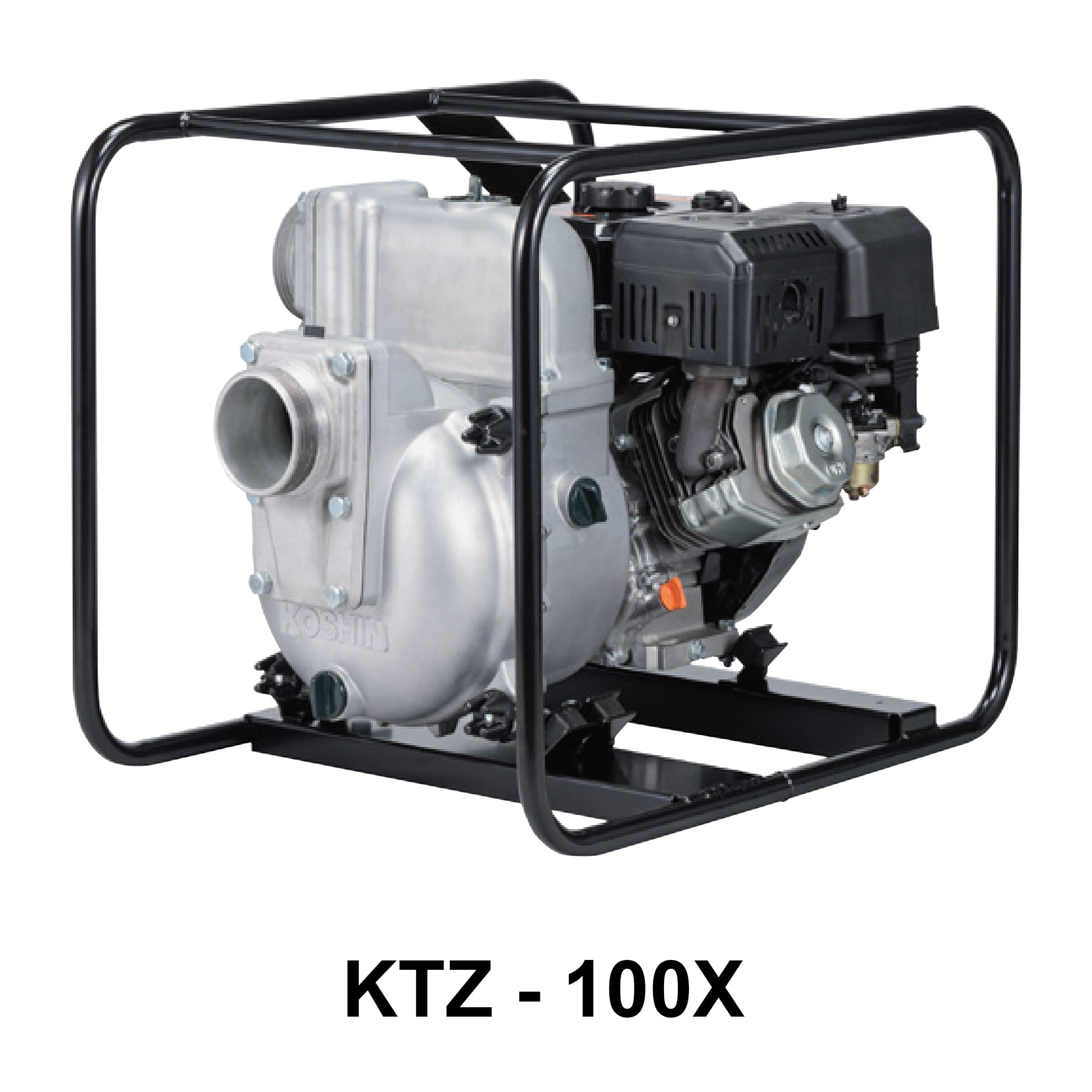

| Specification | SEV-50X | SEV-80X | SEV-50D | SEV-80D | STV-50X | STV-80X | STV-100X | KTZ-50X | KTZ-80X | KTZ-100X | SERV-50Z |
| Pumps | Connection Dia | Suction | 50mm (2″) | 80mm (3″) | 50mm (2″) | 80mm (3″) | 50mm (2″) | 80mm (3″) | 100 mm (4″) | 50mm (2″) | 80mm (3″) | 100 mm (4″) | 50mm (2″) |
| Discharge | 50mm (2″) | 80mm (3″) | 50mm (2″) | 80mm (3″) | 50mm (2″) | 80mm (3″) | 100 mm (4″) | 50mm (2″) | 80mm (3″) | 100 mm (4″) | 50mm (2″) / 25mm (1″) X2 |
| Connection Thread | Outer Pipe Thread BSP or NPT | Outer Pipe Thread BSP | Outer Pipe Thread BSP or NPT | Outer Pipe Thread BSP | Outer Pipe Thread BSP or NPT | Outer Pipe Thread BSP or NPT |
| Total Head | 27 m (88 ft) | 32 m (104 ft) | 25 m (82 ft) | 26 m (85 ft) | 28 m (91 ft) | 22 m (72 ft) | 21 m (68 ft) | 24 m (78 ft) | 90 m (295 ft) |
| Delivery Volume | 620 L/min (163 USG/min) | 1050 L/min (277 USG/min) | 630 L/min (166 USG/min) | 880 L/min (232 USG/min) | 580 L/min (153 USG/min) | 900 L/min (238 USG/min) | 1500 L/min (396 USG/min) | 680 L/min (179 USG/min) | 1370 L/min (361 USG/min) | 1680 L/min (443 USG/min) | 480 L/min (127 USG/min) |
| Max. Suction Lift | 8 m (26 ft) |
| Material for Mechanical Seal | Sic (Silicon Carbide) x Sic |
| Material for Impeler | Hi-Chrome |
| Material for Volute | FCD450 |
| Engine |
| Type | Forced Air-cooled 4-stroke Diesel Engine | Forced Air-cooled 4-stroke Diesel Engine | Forced Air-cooled 4-stroke Gasoline Engine |
| Model | Koshin K180 | Koshin KD300 | Koshin K180 | Koshin K300 | Koshin K180 | Koshin K300 | Koshin K420 | Koshin K210 High rpm |
| Displacement | 179 cc | 296 cc | 179 cc | 301 cc | 179 cc | 301 cc | 420 cc | 212 cc |
| Rated Output | 3.1 kW (4.2 PS) / 3600 rpm | 4.0 kW (5.4 PS) / 3600 rpm | 3.1 kW (4.2 PS) / 3600 rpm | 5.0 kW (6.8 PS) / 3600 rpm | 3.1 kW (4.2 PS) / 3600 rpm | 5.0 kW (6.8 PS) / 3600 rpm | 7.2 kW (9.8 PS) / 3600 rpm | 4.4 kW(6.0 PS)(5.9 HP) / 4400 rpm |
| Max. Output | 3.5 kW (4.8 PS) / 3600 rpm | 4.4 kW (6.0 PS) / 3600 rpm | 3.5 kW (4.8 PS) / 3600 rpm | 6.0 kW (8.2 PS) / 3600 rpm | 3.5 kW (4.8 PS) / 3600 rpm | 6.0 kW (8.2 PS) / 3600 rpm | 8.6 kW (11.7 PS) / 3600 rpm | 4.9 kW(6.7 PS)(6.6 HP) / 4000 rpm |
| Fuel | Automotive Unleaded Gasoline | Diesel Fuel | Automotive Unleaded Gasoline |
| Fuel Tank Capacity | 3.6 L (0.95 USG) | 3.5 L (0.92 USG) | 3.6 L (0.95 USG) | 6.5 L (1.71 USG) | 3.6 L (0.95 USG) | 5.9 L (1.55USG) | 5.9 L (1.5 USG) | 3.3 L (0.87 USG) |
| Engine Oil | 4-Stroke Engine Oil : API grade SE or above, SAE 15W-40 | CC or CD, Winter : 5W-30, Other season : 10W-30 | 4-Stroke Engine Oil : API grade SE or above, SAE 15W-40 |
| Continuous Operating Time | Approx. 2.6 hrs | Approx. 2.4 hrs | Approx. 2.3 hrs | Approx. 2.2 hrs | Approx. 2 hrs | Approx. 1.6 hrs | Approx. 1.8 hrs | Approx. 2 hrs | Approx. 2 hrs | Approx. 1.5 hrs | Approx. 1.2 hrs |
| Starting Method | Recoil Starter |
| Applicable Liquids |
| Consistency | Clean Water | Sandy Water Water | Muddy Water | Clean Water |
| Suspended Solid Percentage | 0% | 10% | | 0% |
| Max. Solids Size | Clean Water | 8mm | 9mm | 20mm | 27mm | |
| Temperature | 5-45° C (41-113° F) |
| Standart Accessories | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set, 1 Spanner | 1 Strainer, 3 Hose Bands, 1 Engine Tool Set, 1 Multi Tool Wrench (BSP Type: 2 Hose Couplings) | 1 Strainer,*2 3 Hose Bands (?60)*2, 2 Hose Bands (?32),*2 1 Coupling Set (50mm), 1 Closing Plate (50mm), 2 Nipple (25mm), 1 Quick Coupling (50mm),*2 1 Engine Tool |
| Nett Weight | 25.2 kg (55.5 lbs) | 28.7 kg (63.2 lbs) | 46.1 kg (101.6 lbs) | 48.6 kg (107.1 lbs) | 29 kg (63 lbs) | 30.9 kg (68.1 lbs) | 56.5 kg (124.6 lbs) | 48.1 kg (106.0 lbs) | 61.6 kg (135.8 lbs) | 78.2 kg (172.4 lbs) | 33.9 kg (74.7 lbs) |
| Gross Weight | 27.2 kg (59.9 lbs) | 30.7 kg (67.6 lbs) | 50.8 kg (111.9 lbs) | 53.8 kg (118.6 lbs) | 31 kg (68.3 lbs) | 32.9 kg (72.5 lbs) | 66.1 kg (145.7 lbs) | 54 kg (119 lbs) | 68.4 kg (150.8 lbs) | 88.0 kg (194.0 lbs) | 37.5 kg (82.7 lbs) (BSP model) |36.2 kg (79.8 lbs) (NPT model) |
| Dimensions LxWxH (mm) | 504 x 405 x 411 | 543 x 425 x 460 | 600 x 520 x 550 | 600 x 520 x 550 | 554 x 400 x 471 | 593 x 425 x 528 | 683 x 495 x 645 | 703 x 579 x 542 | 726 x 579 x 603 | 816 x 621 x 632 | 570 x 450 x 468 |
